Mobile Gas Detector (BLD-02)

Simple and reliable gas analysis solutions

Online gas analysis system

Built-in quadruple mass spectrometer

Experts in gas analysis and testing for a wide range of applications

Aike Rui BLD-02

Fourth-level mass spectrometry process analysis is a fast, sensitive and reliable method that can accurately qualitatively and quantitatively detect various types of gas phase molecules. It can quickly solve customers' various complex gas analysis and testing problems.

ACT's innovative technology is designed to greatly improve the ease of use, performance and reliability of gas process detection analyzers, giving you peace of mind. It represents the latest achievement of our long-term focus on rapid gas analysis technology.

Gas detection has never been easier

The iCare mass spectrometer is designed for ease of use and optimized performance. For most common applications (qualitative and quantitative analysis of gases, gas process analysis, leak detection, etc.), users can configure the connection method and correct configuration according to their actual conditions. Setting parameters.

The intuitive touch screen interface provides operators, process engineers and maintenance technicians with a convenient menu of operations.

Reliable gas analysis components

Aikere provides complete solutions and technical support. The solution has a one-year standard warranty (optional configurations with two-year and three-year warranties are available), and enjoys global services, a global spare parts network and various customizations. Service contract support.

With the advantages of excellent use and maintenance costs, practical application performance and ease of use.

New settings

Flexible vacuum measurement system configuration

The combination of high-sensitivity sensors and intelligent operation makes BLD-02 the perfect solution for your various analytical tests

Dual detection mode

In a low-pressure detection environment, it can be directly connected to the vacuum flange to achieve fast and convenient process analysis; in a high-pressure detection environment, it can be connected to a sampling tube to match direct sampling and cycle measurement.

New analysis software

The newly developed operating software is easier to use and more reliable.All measurement results can be saved and uploaded to the designated location.New generation of efficient gas analysis solution, intelligent software, easy operation, compact design

The organic unity of mass spectrometry and workstation

The new BLD-02 is equipped with high-performance turbomolecular pumps and diaphragm pumps. The oil-free high vacuum environment provides an excellent background for mass spectrometry analysis. All components are integrated, saving your precious laboratory time;

Different measurement software provides a wide range of testing solutions for your gas analysis; universal measurement procedures, optimal integration of high-tech components;

Integrate the computer into the device to realize the organic integration of analysis software and control system, matching a wide range of applications!

Wide range of applications

ALL IN ONE’S GAS ANALYSIS SOLUTIONS

A successful gas analysis solution depends largely on the application conditions.Here are a few common applications and where ultra-high reliability can be achievedExample of an ideal configuration solution for the result.

Special gas analysis

- Leakage analysis of medicine bottles

- Refrigerant leakage test in air conditioning industry

- Special gas cylinder impurity removal

- Cleaning process monitoring

- Requirements for low-pressure testing of vacuum flange docking

Lithium battery leakage analysis

- Leakage analysis and detection of single battery cells

- Leakage analysis and detection of battery modules, suitable for semi-automatic detection of battery cell production lines

- Leakage detection of battery cells in the battery pack Internal leakage analysis - Leakage detection of the battery pack shell

Semiconductor Process Analysis

Process monitor for semiconductor processes such as ALD, CVD, PVD and etching.Achieve optimal wafer and panel protection and process optimization.

- Chemical gas phase reactions;

- Cavity leakage analysis;

- Identification of trace contaminants;

- Measure process reaction and background components;

- Qualitative gas purity

Redefining rapid gas analysis testing solutions

Practical, fast and convenient

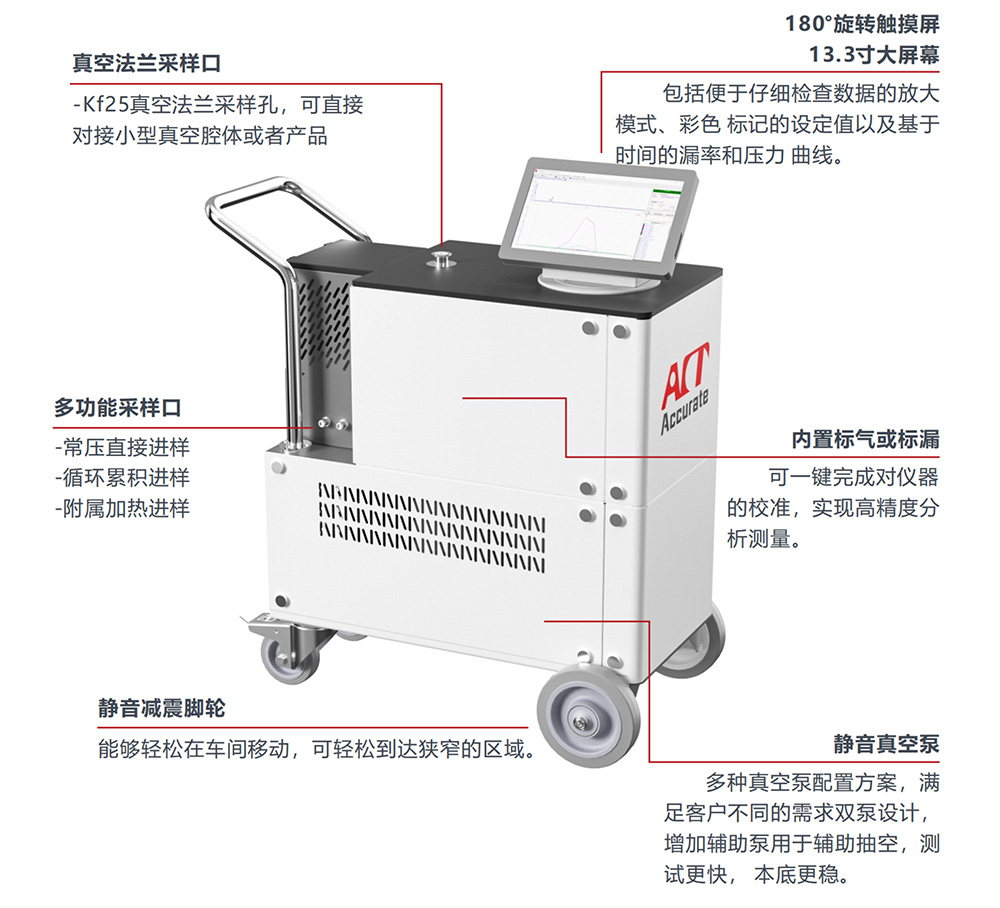

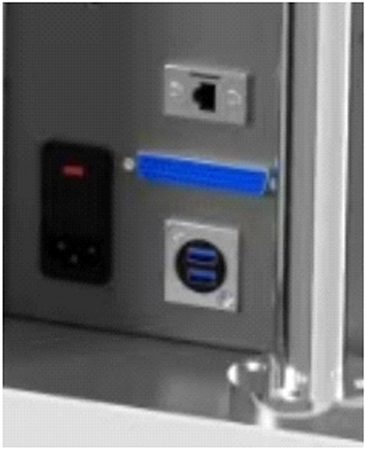

Communication interface information

Multifunctional expansion interface

Data port and connection

8   Analog output

8   Analog input 1 0   Digital output

5   digital input

Linkage with other instruments for data sharing

Network communication

Can be externally connected to an independent host computer system

Can communicate independently with mass spectrometer software

Regulatory connection

Independent internal pressure management and control

Full-scale digital or analog regulation protects the mass spectrometer from pressure rises

Technical Parameters

Vacuum system	HiPace 80
Turbomolecular pump	60-80 l/s
Backing pump	1m3/h
Auxiliary pump	3 m3/h (large pumping speed pump can be customized)
low vacuum gauge	Composite full range vacuum gauge
Inlet vacuum gauge	Pirani
Testable gases
Measuring range	from 1 to 100amu (200/300 optional)
进sample system	Vacuum flange, injection tube, etc.
vacuum flange	KF25
	Configurable inlet body and docking bellows
Normal pressure flange	1/16 ferrule, quartz tube, peek, stainless steel tube, etc.
Auxiliary heat (optional)	200/350℃ auxiliary heat
mass spectrometer	QMG 250   F1	QMG 250 F2	QMG 250 F3	QMG 250 M1		QMG 250 M2		QMG 250 M3
Detector	Faraday (F)			C-SEM/Faraday (M)
Quality range	1–100u	1–200u	1–300u	1–100u	1–200u		1–300u
Quadrupole diameter/length	6mm/125mm
Minimum detectable partial pressure, Faraday3)	4·10-13   hPa	5·10-13 hPa	7·10-13 hPa
Minimum detectable partial pressure, C-SEM3)4)	–	–	–	3·10-15 hPa	4·10-15 hPa		5·10-15 hPa
Ar sensitivity, Faraday5)	5 · 10-4 A/hPa	4 · 10-4 A/hPa	3 · 10-4 A/hPa	5 · 10-4 A/hPa	4 · 10-4 A/hPa		3 · 10-4 A/hPa
Maximum operating pressure, Faraday operation	5·10-4 hPa
Maximum operating pressure, C-SEM operation	–	–	–	5·10-5 hPa	5·10-5 hPa		5·10-5 hPa
Adjacent quality interference (40/41)	< 10ppm	< 20ppm	< 50ppm	< 10 ppm	< 20ppm		< 50ppm
maximum operating temperature, analysis unit	200 °C (max. 150 °C when operating with SEM)
Operating temperature,    electronics	5 – 50°C
baking temperature,   analyzer	300°C
Butt flange	DN 40CF-F
Resolution at 10% peak height	0.5 – 2.5 u
Scan speed	1 ms – 16 s/u
Peak ratio repeatability	±0.5%
Communication Interface	Ethernet
powered by	100–240 V AC, 50/60 Hz
BLD-02
Total weight	60-120kg
size	950*408*1200mm（L*W*H）

Application consulting and services

Application consulting

ACT application engineers will analyze your application and provide recommendations on how to optimize gas analysis testing

Service and support options

ACT has a global network of professional service personnel and a variety of support options

– Fulfill your needs

– Maximize work efficiency

– Ensure your instrument is fully capable of complex applications

Complete gas analysis testing solutions

ACT Vacuum represents global innovative and customized gas analysis testing solutions,   Technical perfection,   Sound advice and reliable service

Full coverage of gas analysis products

We have products and solutions for everything from mass spectrometry to spectroscopy,   Solve your gas analysis in multiple complex gases and complex environments, and match a wide range of gas analysis testing applications.

theoretical and practical skills

Benefit from our expertise and our training!We support your gas stripping analysis   ，   And provide you with first-class on-site service.
